Pinnacle product? The Land Rover Coram bottle jack

This photo could spawn a lot of really bad jokes: a jack for a Land Rover, made in Italy, sitting in a Land Cruiser.

Let me explain.

Few manufacturers pay much attention to the jacks they include for changing a flat tire. No salesman is going to pull one out during his pitch, and a lot of people these days simply call AAA if they have a flat, and surf the web on their phone until the truck shows up.

The typical jack on small to medium-sized 4x4 vehicles these days is a scissors jack, barely adequate for an unloaded vehicle and nearly impossible to use for some people if there’s a good load.

My FJ40 came with a bottle jack—a mechanical screw type. It was stronger, but limited in its rise to one extension of the shaft, and still a beast to operate if the Land Cruiser was loaded. Its top post was a simple circular disk and thus lacking in stability.

Land Rover took a different approach with the early Range Rover. Its jack was a bottle type as well—but hydraulic, made by Coram in Italy, with a 2,000-kg rating, which made lifting even a loaded vehicle much easier. In addition, they equipped it with two extra-long operating rods so you didn’t have to be stuffed sideways under the vehicle to work it. It had a double-extending ram for extra lifting height. Finally, the post incorporated a curved top piece that securely cradled the front or rear beam axle of the Range Rover.

The same jack came in early Discoveries as well, and possibly Defenders. However, I have heard that at some point (1995-ish?) the steel body was replace with . . . plastic? And later on a similar-looking jack was substituted, but made in China. All of these I’ve seen were black rather than the ketchup red of the Corams.

I found a nice one on eBay for $40, and it’s been my FJ40 jack ever since. They’re still easy to find, but beware—the downside to hydraulic jacks is that seals can wear and leak, rendering the jack useless (possibly why Toyota stuck with the screw type). If you buy one try it immediately; if it doesn’t work the first thing to do is check the hydraulic fluid level through the rubber plug. If filling it doesn’t help it will need rebuilding, which I understand many hydraulic specialty shops can do but have not confirmed. If at all possible, store the jack upright.

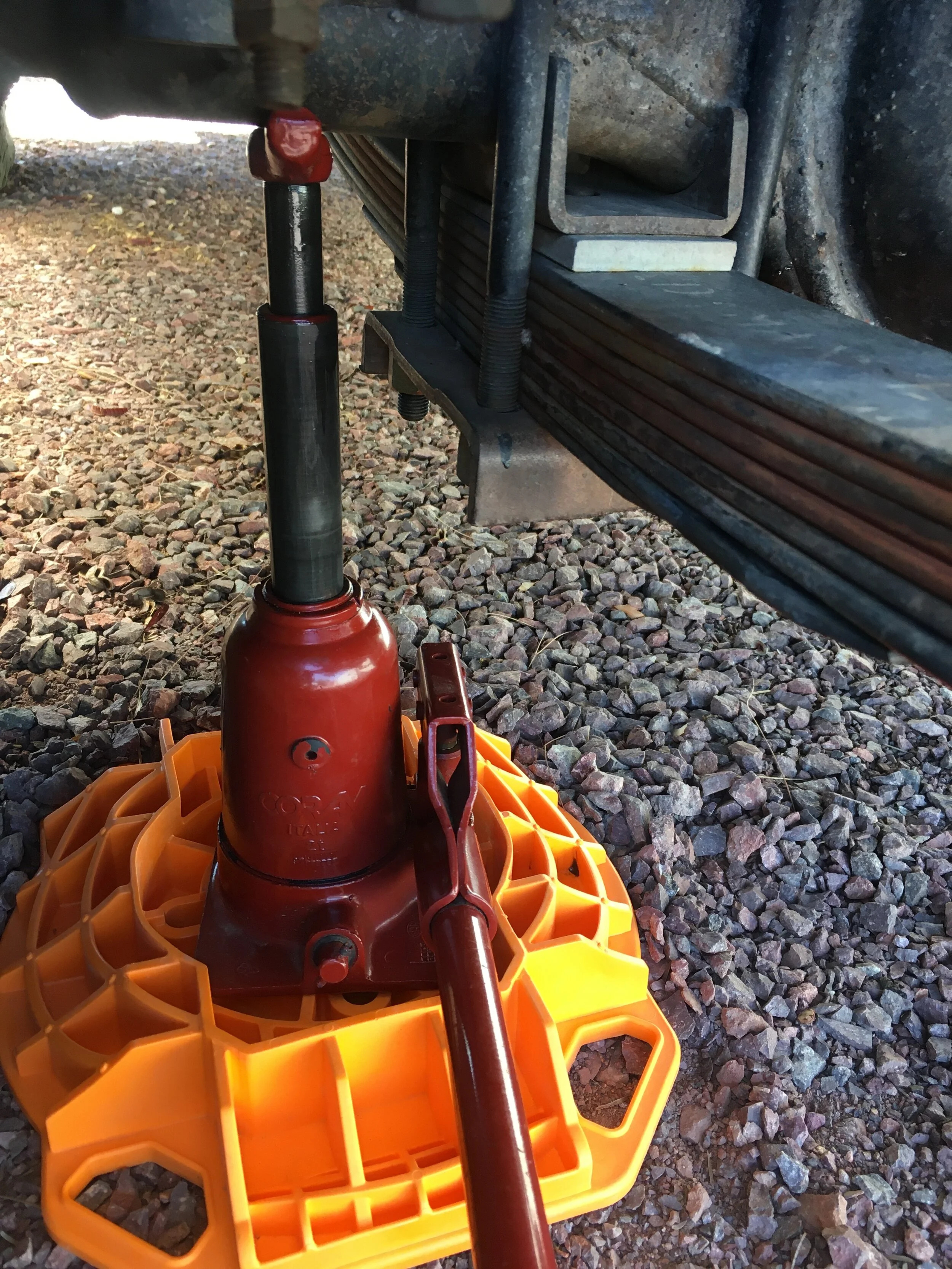

The Coram jack fits into ARB’s excellent jack base, which also accepts either a Hi-Lift or an ARB Jack.

Step 22 Gear's Silent Jack

I know what you’re thinking, but keep reading. This isn’t just another polyurethane handle keeper.

Some time ago I wrote about my homemade Hi-Lift jack keeper, here. It functions superbly in terms of keeping the jack handle secured, with no possibility of the keeper shifting. However, my keeper does nothing to reduce the rattling of a stowed Hi-Lift, which can be annoyingly loud if, say, you have the jack mounted on a roof rack above the driver or passenger window, as many of us do, or vertically in front of a door, as some FJ40 and Jeep owners do.

Enter the Step 22 Gear Silent Jack. The polyurethane handle keeper is more or less the same as a hundred others—although I found it fit tighter (better) than most. The trick to this keeper is the second molded piece that wedges between the base of the handle and the shaft:

This piece locks the entire jacking mechanism solid, completely eliminating movement. Remove the jack’s foot (easy with Step 22’s spring-loaded base-plate pin) and there is no noise, period.

The fit is very tight—I had to squeeze hard to get the handle keeper over the handle and shaft with the wedge in place—but that indicates to me it should stay effective for a long time. You also have an extra piece to keep track of, but that shouldn’t be a big deal. I found it t be a simple but worthwhile update to the standard poly handle keeper.

Step 22 is here. Take a look at their equipment cases too. I’m hoping to try one of their tool cases soon.

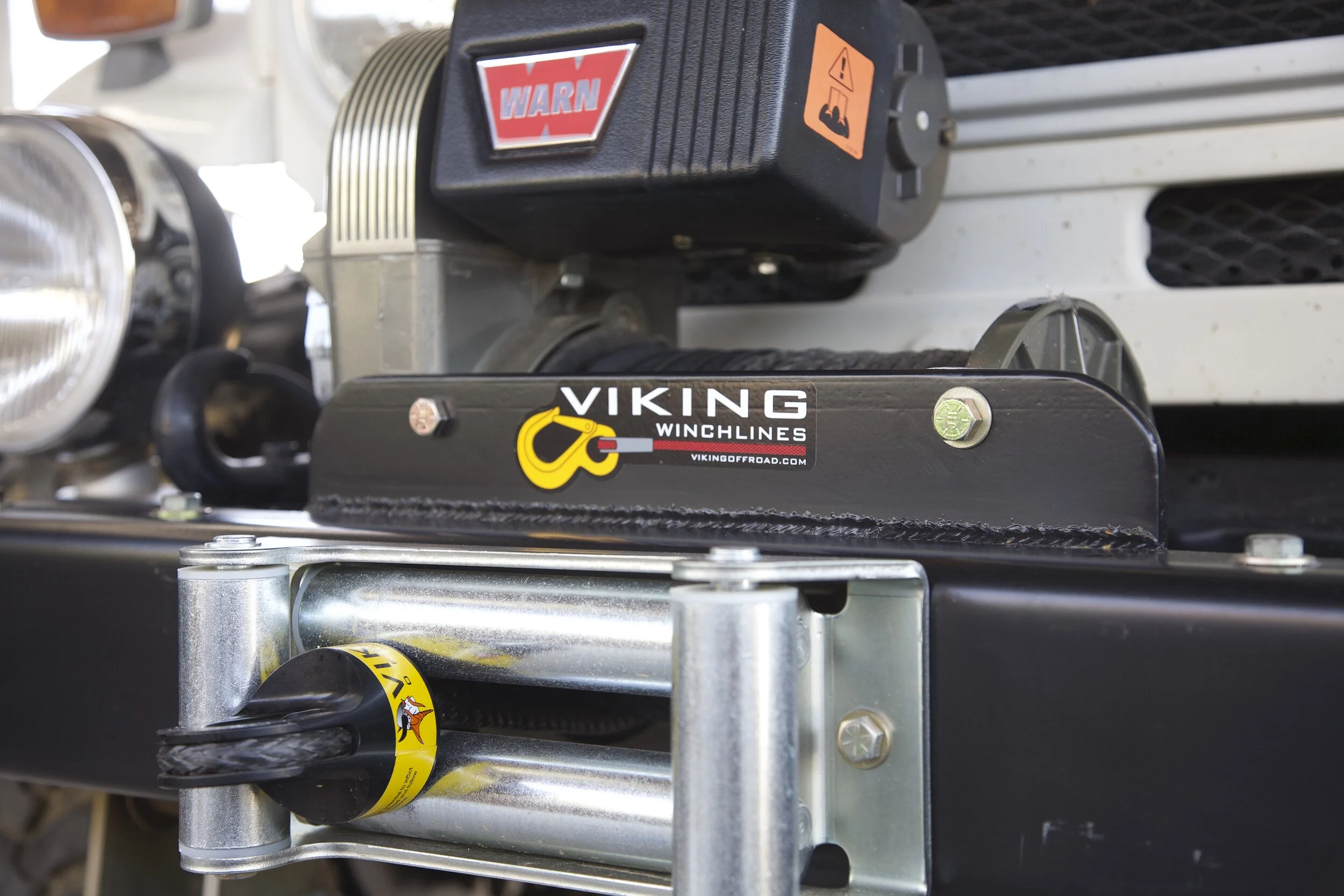

Warn's "new" M8274 winch

When a product stays in production for a half century with virtually no change to its configuration or specification, you know the original designers were inspired with genius.

Such is the case with Warn’s M8274 winch. Introduced in 1974 as a mere tweak or two upgrade from the even more venerable Belleview winch (from 1959), the 8274 combined excellent power (8,000 pounds) with massive cable capacity (150 feet), and spur drive gearing that was not only superior in strength but more efficient than any other winch driveline on the market—75 percent, compared to 40 percent in the only other winch that can claim equally legendary status, the worm-drive Superwinch Husky.

The 8274 could also claim the fastest loaded and unloaded line speed of any production winch—an “advantage” that to my mind was not all that advantageous, since generally when I’m winching I want the process to proceed as steadily and slowly as possible. But some people like the speed, and in competition 8274s were commonly hotted up with second motors to increase speed still more.

Another advantage to the 8274 became apparent with the advent of synthetic winch line. The brake on the winch is external to the drum, which meant there was no chance of overheating the line when winching in reverse.

The 8274’s only practical disadvantage was its height and foot-forward mounting system, which required a dedicated bumper and a vehicle with clearance for the height. On my FJ40 it was a match made in heaven.

Thus from 1974 through 2019, the 8274 remained virtually unchanged. Now, however, Warn has announced a “completely new” version.

The “new” 8274 now boasts a 10,000-pound capacity thanks to a six-horsepower motor (although they have retained the 8 in the model designation, which referred to the original’s capacity). It can also be had from the factory with synthetic line. Importantly, the original solenoid-based switching mechanism for the motor has been replaced with a waterproof, solid-state Albright contactor. The solenoids, while durable, were not waterproof, and could on extremely rare occasions freeze in the closed position, which meant the winch would keep pulling even if the operator let go of the remote button.

So, why did I state “through 2019” rather than 2020, and why did I put “new” in quotes?

Because we have already seen this winch. It was introduced last year as the 70th Anniversary model (see here), with the same 10,000-pound capacity, Albright contactor, and synthetic line. What Warn has (apparently) done is to simply make the anniversary model the new standard 8274. Even the list price, an eye-watering $3,199, is the same.

Notwithstanding that tiny bit of marketing legerdemain, the new Warn 8274 looks set to enjoy another several decades as the winch against which all others are measured. If you have a serious expedition vehicle with an appropriate mount, there is no better choice.

Warn is here.

A better Hi-Lift handle keeper?

If you own a Hi-Lift jack, you’ve probably dealt or struggled with the issue of how to lock the handle firmly in place during transport.

The spring clip that comes on the jack is worthless (and not designed) for that purpose. The polyurethane collars that slip over the handle and shaft are okay, but in my experience they stick when new, and eventually wear and slip down on the jack if it’s stored upright, or vibrate right off the end if it’s stored horizontally. For a time I just used a piece of One-wrap (hook-and-loop tape), but I’m not a big Velcro fan, and it quickly clogs with dirt when used in such an application.

A few years ago I set out to make something better. With an old sheet of half-inch-thick HDPE plastic—I don’t even remember what from, perhaps a cutting board?—I started playing around with ideas, and eventually came up with what you see here.

It slips easily over the shaft and handle of a Hi-Lift, and you can lock it anywhere you like with the two through-pieces and then the spring clip. It can’t slip. The only disadvantages I’ve found are that it won’t slide over the removable clamping foot if you keep one attached (although you could modify the opening so it could), and it has multiple pieces that might be prone to loss. However, I think it would be easy to modify it with a safety wire that would keep all three plastic bits together.

Always remember to store your Hi-Lift with the operating lever in the “lift” position.

P.S. If you don’t want to make your own, Step22 Gear has a promising alternative, here. I just got one and will be reviewing it soon.

Why you need the new edition of Tom Sheppard's Four-by-four Driving

If you want to be a better driver— and who doesn’t no matter what level we might consider ourselves to be at the moment?—and you don’t have this book, you need it. Trust me on this.

Full disclosure: I receive a bit of commission on every copy sold in the U.S., and I contributed the sections on winching and Hi-Lift/ARB jacks. But that’s not why I want you to buy it.

The reason you need it is because there is no other instructional book on four-wheel-drive technique that does what Tom Sheppard does in this one.

Four-by-four Driving doesn’t simply tell you how to drive in different situations. As the blurb on the back cover states, “I.T.D.S.—It’s the Driveline, Stupid.”

Knowing how to drive is great. Knowing why the vehicle does what it does, knowing how different drivetrains operate and how each reacts to differing terrain, knowing the strengths and weaknesses of each type of four-wheel-drive system, and learning how to exploit those strengths and accommodate those weaknesses, will turn you from a competent driver into a master of the machine and the terrain. I still learn or am reminded of those lessons every time I open my copy.

You can, if you like, just read the section in Four-by-four Driving that covers your own vehicle, but you’ll gain much more if you read through the descriptions of drivetrains and operating systems of vehicles around the world. Not only can you master your Tacoma, you’ll be able to hop in a friend’s Discovery or Wrangler or G-Wagen and master it too. In fact if you dedicate yourself to the first part of this book you could probably be air-dropped anywhere on the planet and stand a good chance of knowing how the dominant local transport works. Suzuki Jimny? Sure. Skoda Karoq Scout? Yep. On the off chance you find yourself in a Rolls Royce Cullinan, you’ll be right at home. And this edition includes, among other updates, full technical details of the new Land Rover Defender. (If you already own the fifth edition, note that the Defender coverage comprises the majority of changes to the sixth.)

Only after explaining drivetrains, traction-control systems, suspensions, and operating systems does the book start in on driving techniques, beginning with what I consider to be the basic skill that must underpin all others: mechanical sympathy.

Then, yes: You’ll learn how to drive on sand, mud, ice, and rocks. You’ll learn how to handle ruts, side slopes, water crossings, hill ascents and descents. Following this comes a chapter on recovery, both solo and assisted (and that brilliant section on winching . . . ).

Finished? Not even close. Now comes a section on advanced driving. If you ever find yourself plopped in the driver’s seat of a 60-year-old Bedford truck with a non-synchro gearbox, you’ll learn how to handle it. Or, want to show off by shifting the transfer case in an FJ40 or Series Land Rover from low to high range, while moving? That’s in there too.

Following all this are sections on expedition basics, tires and tire pressures, loading and lashing, oil types and grades, fuel, water . . .

But it’s in Four-by-four Driving’s former-RAF-test-pilot level of detail explaining how four-wheel-drive vehicles do what they do that the real gold of the book lies. Which explains why, unlike those 30 different watches you can buy that all claim to be “Used by Special Forces,” Four-by-four Driving actually is used as a training manual by special forces in both the U.K. and the U.S. It’s worth every penny.

Available right here.

Not so simple: The simple redirected winch pull

Take any reasonably comprehensive winching course and, once you’ve covered the basic single-line pull, you’ll be introduced to the snatch block—or, more recently, its elegant one-piece alternative, the billet-aluminum recovery ring.

A pulley—which is what both devices are—serves a couple of purposes in a winch system. Most impressively, when a winch line from a vehicle is led through a pulley attached to an anchor and then back to a recovery point on the vehicle, the power of the winch is essentially doubled (minus minor frictional losses) while line speed is halved. (A corollary to this is that by pulling more line off the winch to rig a double-line pull, you are further increasing the power of the winch by reducing the layers of line on the drum. Thus you receive a double benefit during a difficult recovery.)

The other valuable use of a pulley is to redirect a pull—around a corner as it were—when a straight one is either awkward, dangerous, or impossible. It’s frequently used to recover a bogged vehicle when a recovery vehicle equipped with a winch cannot be positioned directly in front of it. A suitable anchor such as a tree is employed as a redirect point, using a tree strap and a pulley.

When you learn how to rig a redirected pull you’ll also learn that this use of a pulley does not multiply the power of the winch, nor does it halve the line speed. The easiest way to figure out whether or not you are multiplying winch power in any situation is to count how many lines are shortening when you engage the winch. For example, in the illustration below labelled Double-line Pull, both the line from the winch to the pulley and the line from the pulley back to the vehicle will shorten as the winch pulls, thus the power is multiplied by two.

On the other hand, in our simple redirected-pull scenario above, only the line running from the pulley to the bogged vehicle will shorten—the distance between the pulley and the winching vehicle will not change. Therefore the winch is operating at its rated power.

But now comes the not-so-simple  part. What about the load on the anchor?

Let’s assume that in all our scenarios, the bogged vehicle needs 4,000 pounds of pull to retrieve it. If the operator rigs a single line pull to the tree anchor directly in front of the vehicle and engages the winch, the load on both the winch and the tree is 4,000 pounds.

If the operator rigs a double-line pull, the vehicle still needs only 4,000 pounds of pull to move. Due to the effects of the pulley the load on each line is halved, to 2,000 pounds; thus the winch is  only exerting 2,000 pounds (and only drawing the amperage necessary for that), and the recovery point on the vehicle is also experiencing 2,000 pounds of force. The load on the anchor remains 4,000 pounds.

So far so good. Now let’s take another look at our redirected pull, where one vehicle is at 90 degrees to the other. In this scenario, the bogged vehicle still needs 4,000 pounds of force to move. The winch on the recovery vehicle is also subjected to 4,000 pounds—again taking into account slight frictional losses. So the force on the anchor must also be 4,000 pounds, right?

Actually . . . no.

In this case—a 90-degree redirected pull—the force on the anchor will actually be 5,656 pounds, almost 50 percent higher. The force is calculated using the formula:

pull = 2t(cosine x)

 . . . where pull is the force on the anchor, t is the force exerted by the winch, and x is one half the angle at which the winch line passes through the pulley (in other words, the direction in which the anchor would move if it failed; in a 90-degree redirect it would be 45 degrees).

So, in our case, 2 x 4,000 pounds is 8,000, multiplied by the cosine of 45º which is .707, equals 5,656 pounds.

There’s more. As the angle between the bogged vehicle and the recovery vehicle narrows, the force on the anchor continues to increase. Imagine the scenario below, in which the recovery vehicle has to be situated directly alongside the bogged one—I’ve been in this situation. In this case, with the angle between the winch lines near zero, the force on the anchor would be (very nearly) doubled, to 8,000 pounds—even though the bogged vehicle is still only subject to 4,000 pounds of pull to free it. Imagine a tougher scenario in which the recovered vehicle took the full might of, say, a 10,000-pound winch to free it. In such a case that pine tree you wrapped your strap around is going to have about 20,000 pounds of force trying to pull it over—and all the hardware attached to it will be subject to the same stress.

You don’t actually have to have a calculator with a cosine function to figure the increase in force if you use a chart such as this, where “factor” equals how much the force on an anchor is multiplied by different angles of redirected pull :

And, in reality, you don’t need to do any figuring or checking at all. All you need to remember is that in any redirected pull, the force on the anchor can be up to twice what the rest of the system is subjected to. And the anchor includes the tree or chocked vehicle or whatever you are rigging to, as well as the tree strap, shackle, and pulley in the anchor assembly.

Non-instinctive effects of physics such as this reinforce the axiom always to use recovery equipment rated for the vehicle and winch, with working load limits (WLL) clearly marked, and adequate safety factors.

Learn how to winch online! Or not.

The greatest thing about the Worldwide Web is the vast amount of information accessible with a few clicks of a computer mouse.

The worst thing about the Worldwide Web is the vast amount of mis-information accessible with a few clicks of a computer mouse.

As part of my explorations of the online overlanding world, I occasionally browse through instructional YouTube videos, and I am frequently reminded how many of them should be called “instructional” videos. Sometimes the information in the latter type is harmless. Other times it is decidedly not harmless. That especially applies when the “instruction” is about winching.

Consider the video I have bookmarked in which the host attempts to demonstrate the party trick of moving a vehicle backward with a front-mounted winch. In essence this is a simple and virtually worthless procedure that involves running the line from the winch through a snatch block anchored to a tree in front of the vehicle, then to another attached to a tree behind the vehicle, then back through a third snatch block mounted on the vehicle’s rear recovery point, and finally to an anchor. When the winch is engaged the mathematics of the line being pulled results in the vehicle moving slowly backward. Aside from the fact that very few of us carry three snatch blocks, the odds of anchors being in exactly the right spot to rig this system where you might get bogged are scant. Our host got around the problem of multiple snatch blocks by simply using shackles instead—with steel winch cable. Ouch. He also utilized a child’s car seat as a winch line damper. Needless to say his attempt failed. However, the furthest anyone really needed to go with this “instructional” video was a glance at the fellow’s “spooled” winch cable.

A rat’s nest just begging for a snarl or jam.

In another demonstration of reverse winching, a cheerful Aussie bloke uses a kinetic strap as a tree saver—pretty much the most egregious never-do-this move you can make when rigging a winch recovery.

However, a recent video I watched, from Bold Canyon Outdoors, was in a way even more confusing, as it boasted decent production values, a well-spoken host, and significantly better equipment. The video offered a basic guide to winching, including a single, double, and triple-line pull.

It started out with a bit of humor, which was fun. But after the host brought out the winch kit he was using—and heavily promoting—from a company called Gear America, and began discussing the procedure, things began to go south. If I went through the video again I could probably pick out more goofs, but what I noticed immediately included the following.

First, he simply introduced a Jeep Wrangler with a winch. He said nothing about winch selection, sizing, mounting—the winch was simply there, taken for granted.

Then, when he introduced the “Gear America Ultimate Winching and Rigging Off Road Recovery Kit” (yes, really), he made no mention of matching the kit to the winch, no mention of working load limits (WLL) or minimum breaking strength (MBS) of the shackles or snatch block. He pulled out a “tow strap” included in the kit. Was it truly a tow strap, or a kinetic-recovery strap? Big difference. You can use an elastic recovery strap to tow with, but it would be dangerous to use a non-elastic tow strap as a kinetic recovery strap. He referred to the bow shackles in the kit as D-rings—not a big deal, you might say, but the little mistakes and omissions were quickly adding up to a not-very-credible presentation.

When the host ran the winch line out to a tree to use as an anchor, he mentioned nothing about choosing an appropriate (i.e. live and large enough) tree to take the strain. He also, critically, failed to check overhead for dead limbs that could be dislodged by the stress of winching. He properly employed a tree saver strap, but positioned it above waist height. A tree strap should be positioned as low as possible to reduce stress on the tree. Finally, when he connected the winch line to the tree strap with a bow shackle, he specified that the shackle pin should be “snug”—an elementary beginner’s mistake. A shackle pin should be snugged, then backed off a quarter turn or so. This is not a safety issue, but a way to ensure the pin doesn’t jam under load.

He then properly advocated employing a winch line damper to help control a recoiling line if a component in the system breaks. He placed the weight in the middle of the line. This is a small point, but I prefer placing the damper closer to the end of the line where the shackle and winch hook are—those are the heavy bits that represent the most danger should either or both come loose.

Next the host demonstrated a double line pull. While doing so, he introduced the Gear America snatch block, and noted that it is “suitable for either synthetic or steel winch line.”

Ugh.

The Gear America snatch block has a steel pulley with what looks like a standard semi-circular groove for the line. That’s perfectly suited for steel cable. A snatch block for synthetic line should ideally have a composite pulley. More to the point, while the steel Gear America pulley could be used with synthetic line, you would certainly not want to do so once it had been used with steel cable, and you most definitely would not want to swap back and forth. Steel cable will leave micro-abrasions on the pulley that are not good for synthetic line. (For the same reason, a winch fairlead—whether hawse or roller—that has been used with steel cable should be replaced if synthetic line is installed on the winch.)

I looked up Gear America, which seems to specialize in low-cost recovery equipment. The “Gear America Ultimate Winching and Rigging Off Road Recovery Kit” actually comprises a pretty basic assortment of kit, including what the website lists as a “tow strap.” Hmm. So I looked up that product separately, and found its description:  “Use it as a Tow Strap, Recovery Strap, Tree Saver Strap or Winch Extension Strap, making it an extremely versatile product.”

Oh brother.

I looked at the construction, which is polyester, meaning there will be very little stretch in this thing. Therefore the suggested use as a “recovery strap” is highly problematic, since a recovery strap is commonly made from nylon and designed to stretch and absorb shock when it is used in a kinetic recovery. A novice who had looked at just enough YouTube “instructional” videos to have a vague idea of how to snatch a stuck vehicle could easily break something or rip off a bumper by backing up and taking a run at moving a bogged vehicle with this “multi-purpose” strap. At least the site lists the MBS and WLL of the strap (35,000 and 12,000 lb).

Next I looked at the bow shackles included with the not-going-to-write-it-all-out-again recovery kit—which are actually described there as “D-ring shackles.” They’re 3/4-inch versions, a standard size in thousands of recovery kits, and properly stamped “WLL 4 3/4T,” or 9,500 pounds. With a standard six-to-one safety factor on shackles that works out to a 57,000-pound MBS. However, the description right under the photo of the shackle and its stamp says it has a “10,500-lb WLL and 58,000-lb MBS.” Hmm . . .

9,500 pounds? Or 10,500?

Not to worry about math. Below that is the assurance that you can:

• MAKE A BOLD STATEMENT - Our Unique Design Ensures Unprecedented Strength and Looks Amazing on your Jeep or Tuck (sic).

Lastly I looked at the Gear America snatch block, and sure enough it’s listed as being suitable for both steel and synthetic line. Also, the snatch block itself is labeled “9 US ton,” while the description below it says it has a “10,000-pound working load limit,” and an MBS of 10 tons. So . . . which is it, guys? Further, it appears there is no WLL indicated on the product, which could lead a user to assume the “9 US ton” refers to a working load limit—a dangerous assumption.

My impression of the Gear America site, I’m afraid, is that is was conceived and created by some people who thought selling 4x4 recovery gear would be a good business, but who have very little experience with actual 4x4 recovery. Either that or they handed off their website design to someone with no clue, and didn’t do any fact-checking.

Going back to the Bold Canyon Outdoors video, I realized the host was simply parroting most of what the Gear America advertising stated regarding their products. But that’s no excuse: If you’re going to post an “instructional” video that involves a potentially hazardous activity (the one in question has had 8,000 views), you really should strive to get every detail correct.

The $50 MV50 air compressor. Yay or nay?

The ubiquitous MV50 air compressor, which is sold under a dozen different brands as near as I can tell, is not one I usually recommend. When they work, they work okay—not nearly as well as a truly high-quality compressor from Viair or ARB or Extreme Outback, but okay. Certainly the MV50 is a far better choice than those $29 plastic-bodied units with built-in flashlights that plug into the cigarette lighter. The MV50 has a metal body, and connects directly to the vehicle’s battery, which allows it to draw half-way decent amperage and thus put out halfway decent volume.

The problem with the MV 50s with which I’ve had experience has been consistency. Some owners have brilliant luck with them and wouldn’t use anything else; others have had them fail weeks into ownership. Yet so popular are they that you can easily find articles on hacking the unit for better reliability.

Recently I’ve been alerted to the MV50—in this case sold as a Masterflow Tsunami MF-1050—selling for under $50 on the Pep Boys eBay store (here at publication), with free shipping. At that price it’s a tempting bargain, even given the random instances of early failure.

I still urge those who ask me to spend til it hurts on their compressor, and I’ve never once had anyone come back and say he was sorry he bought an ARB Twin or an Extreme Outback ExtremeAir or even a Viair 400P. But if you really, really can’t afford that kind of money, at $50 the MV50 is a decent proposition—and way, way better than no compressor at all.
